TO-220P 16A triac BT139 applications

    Payment Type: L/C,T/T,Paypal
    Incoterm: FOB,CFR,CIF
    Delivery Time: 30 Days

Basic Info

Model No.: YZPST-BT139

Additional Info

Productivity: 1000

Brand: YZPST

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 10000

Certificate: ISO9001-2008,ROHS

Port: SHANGHAI

Product Description


Triac YZPST-BD139


General description

Passivated triacs in a TO-220P Plastic Package. intended for use in applications requiring high bidirectional transient and blocking voltage capability

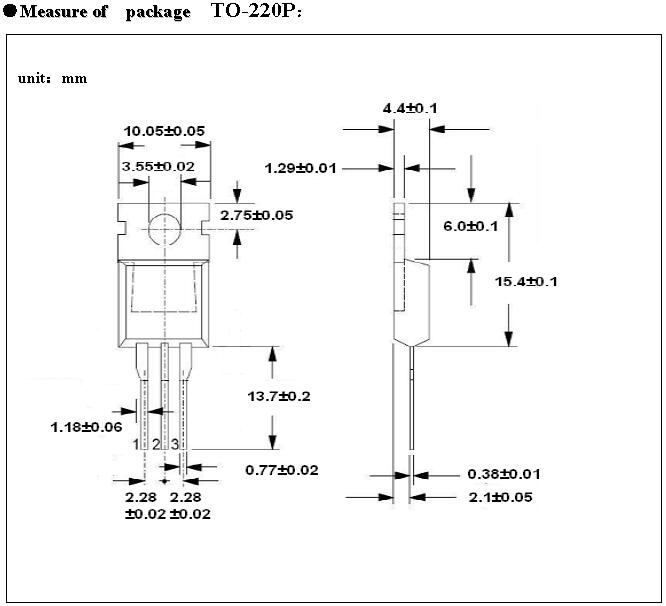

Package TO-220P

triac bt139 (6)


Main Feature (Tj=25)

Symbol

Value

Unit

IT(RMS)

16

A

VDRM / VRRM

600

V

ITSM

140

A

Symbol

Parameter

Value

Unit

IT(RMS)

RMS on-state current(full sine wave)

16

A

ITSM

Non- repetitive Peak on-state

Current (full cycle,Tj=25,F=50Hz,tp=20ms)

140

A

I2t

I2t Value for fusing(tp=10ms)

98

A2S

IGM

Peak gate current

2

A

VGM

5

V

PGM

5

W

PG(AV)

Average gate power

0.5

W

di/dt

Repetitive rate of rise of on-state current after triggering
(IT=6A,IG=0.2A,dIG/dt=0.2A/μs)

--

50

A/μs

10

Tstg

Tj

Storage temperature

Operating junction temperature

-40--+150

-40--+125

Absolute ratings (Limiting Values)

Thermai Resistances

Symbol

Parameter

Conditions

Min

Type

Max

Unit

Rth j-mb

Thermal Resisatance,Junction to mb

One cycle

Half cycle

--

--

--

--

4.0

1.7

K/W

K/W

Rth j-a

Thermal Resisatance,Junction to ambient

--

--

55

--

K/W

Electrical characteristics (Tj=25 unless otherwise stated)

Symbol

Test Conditions

Min

Type

Max

Unit

IGT

VD=12V RL=30Ω

T2+ G+

T2+ G-

T2- G-

--

--

--

10

15

20

10

25

25

mA

mA

mA

IH

VD=12V IGT=0.1A

6

50

mA

VTM

IT=20A

--

1.3

1.7

V

I DRM

V DRM=520V

20

μA

IRRM

VRRM=520V

20

μA

VGT

VD=12V RL=30Ω

0.7

1.65

V

ID

VD=VDRM(MAX)

Tj=125

--

0.1

0.5

mA

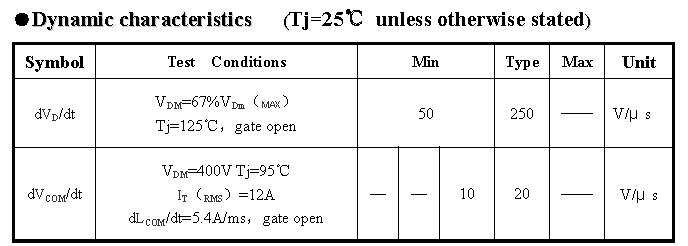

Dynamic characteristics (Tj=25 unless otherwise stated)

Symbol

Test Conditions

Min

Type

Max

Unit

dVD/dt

VDM=67%VDm(MAX)

Tj=125,gate open

50

250

--

V/μs

dVCOM/dt

VDM=400V Tj=95

IT(RMS)=12A

dLCOM/dt=5.4A/ms,gate open

-

-

10

20

--

V/μs

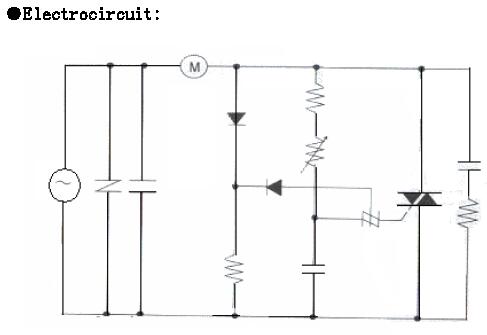

triac bt139 (1)triac bt139 (2)triac bt139 (3)triac bt139 (4)triac bt139 (5)
